FK Series Vacuum Filters

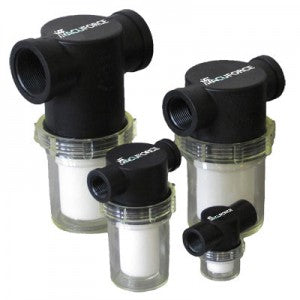

FK series quick coupling filtering cartridge containers

The containers of the FK series are suited for quick coupling filtering cartridges and are composed of a transparent PET (Polyethylene terephthalate) container and a head with a brass ring nut coupled together with an interposed seal.

The number after the item indicates the length in inches of the necessary filtering cartridge.

The cartridge can be chosen in various materials: pleated paper, pleated polypropylene mesh and AISI 304 stainless steel mesh.

The quick coupling filtering cartridges are described on page 5.28, with all the indications regarding dimensions, materials and filtering degree of each one of them.
Technical features
Operating pressure: from 0.5 to 9000 absolute mbar
Temperature of suctioned fluid: from -10 to 45°C
PDF Data Sheet for Product codes: FK25/7 FK30/7 FK25/10 FK30/10 FK50/10 FK60/10 FK30/20 FK50/20 FK60/20 NK
