Mini Cup holder (compensators) with shut off valve

Mini vacuum cup holders with built-in shut-off valve

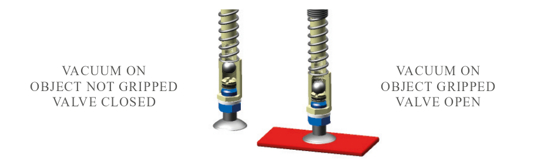

In addition to having all the other features of the mini vacuum cup holders, these also have a built-in shut-off valve. The function of the shut-off valve
is to automatically close suction when the cup is not in contact with the surface of the load to be handled or in case of a faulty grip or of considerable transpiration, thus preventing the reduction of the level of vacuum on
the remaining cups of the system that are regularly gripping a load.

The advantage of this is that the placement or the exclusion of the non-gripping cups is no longer binding. Vacuum cups with a minimum diameter of 10 mm and maximum diameter of 50 mm can be assembled on these cup holders, provided they have a 1/8 “male threaded gas support.

They are composed of:
- A brass stem for fastening the cup;
- A threaded sleeve equipped with nuts, for mounting the vacuum up holder on the automation;
- A spring to cushion the impact of the cup and to, at the same time, maintain constant pressure with the load to be lifted;
- A quick coupling for connection with the suction hose;
- A shut-off valve.
Product codes: 209935       PDF Data Sheet
